Searching for latest 300-430 exam dumps? Implementing Cisco Enterprise Wireless Networks v1.0 (ENWLSI 300-430) exam is a 90-minute exam associated with the CCNP Enterprise and Cisco Certified Specialist – Enterprise Wireless Implementation certifications. We have updated CCNP Enterprise 300-430 ENWLSI Dumps to ensure that you can pass 300-430 exam and achieve your certification. It is a good chance that you will receive the highest quality CCNP Enterprise 300-430 ENWLSI Dumps from FreeTestShare when you prepare and take Cisco 300-430 exam.

Here we prepared some free 300-430 sample questions, you may have a try.

Page 1 of 4

1. An engineer configures a Cisco Aironet 600 Series OfficeExtend AP for a user who works remotely .

What is configured on the Cisco WLC to allow the user to print a printer on his home network?

split tunneling

SE-connect

FlexConnect

AP failover priority

2. Which two steps are needed to complete integration of the MSE to Cisco Prime Infrastructure and be able to track the location of clients/rogues on maps? (Choose two.)

Synchronize access points with the MS

Add the MSE to Cisco Prime Infrastructure using the CLI credentials.

Add the MSE to Cisco Prime Infrastructure using the Cisco Prime Infrastructure communication credentials configured during set up.

Apply a valid license for Wireless Intrusion Prevention System.

Apply a valid license for location tracking.

3. A Cisco WLC has been added to the network and Cisco ISE as a network device, but authentication is failing.

Which configuration within the network device configuration should be verified?

SNMP RO community

device interface credentials

device ID

shared secret

4. A customer is experiencing performance issues with its wireless network and asks a wireless engineer to provide information about all sources of interference and their impacts to the wireless network over the past few days.

Where can the requested information be accessed?

Clean Air reports on Cisco Prime Infrastructure

Performance reports on Cisco Prime Infrastructure

Interference Devices reports on Cisco Wireless LAN Controller

Air Quality reports on Cisco Wireless LAN Controller

5. An engineer must implement a BYDD policy with these requirements:

• Onboarding unknown machines

• Easily scalable

• Low overhead on the wireless network

Which method satisfies these requirements?

triple SSID

open SSID

dual SSID

single SSID

6. When configuring a Cisco WLC, which CLI command adds a VLAN with VLAN ID of 30 to a FlexConnect group named BranchA-FCG?

config flexconnect BranchA-FCG vlan 30 add

config flexconnect group BranchA-FCG vlan add 30

config flexconnect group BranchA-FCG vlan 30 add

config flexconnect BranchA-FCG vlan add 30

7. Which AP model of the Cisco Aironet Active Sensor is used with Cisco DNA Center?

1800s

3600e

3800s

4800i

8. A new MSE with wIPS service has been installed and no alarm information appears to be reaching the MSE from controllers .

Which protocol must be allowed to reach the MSE from the controllers?

SOAP/XML

NMSP

CAPWAP

SNMP

9. A corporation is spread across different countries and uses MPLS to connect the offices. The senior management wants to utilize the wireless network for all the employees. To ensure strong connectivity and minimize delays, an engineer needs to control the amount of traffic that is traversing between the APs and the central WLC .

Which configuration should be used to accomplish this goal?

FlexConnect mode with OfficeExtend enabled

FlexConnect mode with local authentication

FlexConned mode with central switching enabled

FlexConnect mode with central authentication

10. An engineer must enable LSS for the Apple TV mDNS service only when ORIGIN is set to Wired .

Which action meets this requirement?

Set ORIGIN to Wired. Enable LSS by using the config mdns service Iss Apple TV command.

Set ORIGIN to either Wireless or All. Enable LSS by using the config mdns service Iss enable Apple TV command

Set ORIGIN to Wired. Enable LSS by using the config mdns service Iss All command

Set ORIGIN to either Wireless or All. Enable LSS by using the config mdns service Iss All command.

Page 2 of 4

11. An engineer is implementing Cisco Identity-Based Networking on a Cisco AireOS controller. The engineer has two ACLs on the controller. The first ACL, named BASE_ACL, is applied to the corporate_clients interface on the WLC, which is used for all corporate clients. The second ACL, named HR_ACL, is referenced by ISE in the Human Resources group policy .

What is the resulting ACL when a Human Resources user connects?

HR_ACL appended with BASE_ACL

HR_ACL only

BASE_ACL appended with HR_ACL

BASE_ACL only

12. A corporation has employees working from their homes. A wireless engineer must connect 1810 OEAP at remote teleworker locations. All configuration has been completed on the controller side, but the network readiness is pending .

Which two configurations must be performed on the firewall to allow the AP to join the controller? (Choose two.)

Block UDP ports 1812 and 1813 on the firewall.

Allow UDP ports 5246 and UDP port 5247 on the firewall.

Allow UDP ports 12222 and 12223 on the firewall.

Enable NAT Address on the 5520 with an Internet-routable IP address.

Configure a static IP on the OEAP 1810.

13. When configuring a large, high-availability wireless network which change to a mobility group creates less load on the controllers and maintains the same mobility messages?

Configure mobility group multicast messaging.

Remove unnecessary controllers from the mobility group.

Configure the controllers into separate RF groups from the mobility groups.

Separate the controllers into different mobility groups per controller.

14. An engineer is configuring multicast for two WLCs. The controllers are in deferent physical locations and each handles around 500 wire clients .

How should the CAPWAP multicast group address be assigned during configuration?

Each WLC must be assigned a unique multicast group address

Each WLC management address must be in the same multicast group

Each WLC management address must be in a different multicast group

Both WLCs must be assigned the same multicast group address

15. After installing and configuring Cisco CMX, an administrator must change the NTP server on the Cisco CMX server .

Which action accomplishes this task?

Manually edit /etc/ntp.conf as the admin user before restarting ntpd by using service ntpd restart.

Log in to the Cisco CMX GUI as the administrator and type the IP address of the NTP server in System tab > Settings> TimeZone/NT

Manually edit /etc/ntp.conf using an XML editor before restarting the server by using service restart all services.

16. The CTO of an organization wants to ensure that all Android devices are placed into a separate VLAN on their wireless network. However, the CTO does not want to deploy ISE .

Which feature must be implemented on the Cisco WLC?

RADIUS server overwrite interface

AAA override

WLAN local policy

custom AVC profile

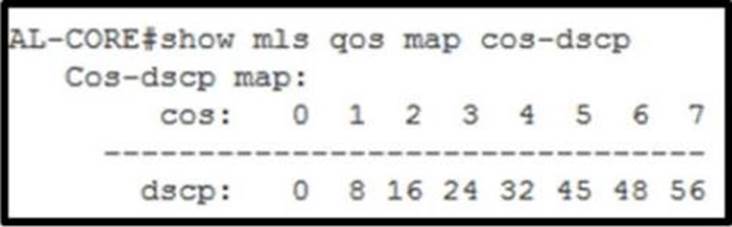

17. Refer to the exhibit .

Which COS to DSCP map must be modified to ensure that voice traffic is tagged correctly as it traverses the network?

COS of 5 to DSCP 46

COS of 3 to DSCP 26

COS of 6 to DSCP 46

COS of 7 to DSCP 48

18. Which command set configures a Cisco Catalyst 9800 Series Wireless Controller so that the client traffic enters the network at the AP switch port?

Option A

Option B

Option C

Option D

19. A company has a single WLAN configured for 802.1x authentication with the QoS set to Silver. This WLAN supports all corporate and BYOD access. A decision has been made to allow users to install Cisco Jabber on their personal mobile devices. Users report poor voice quality when using Jabber. QoS is being applied only as best effort .

What must be configured to ensure that the WLAN remains on the Silver class and to ensure Platinum class for Jabber?

Configure an AVC profile for the Jabber traffic and apply it to the WLA

Configure the WLAN to broadcast on 5 GHz radios only and allow Jabber users to conned.

Enable Cisco Centralized Key Management on the WLAN so that the Jabber-enabled devices will connect.

Configure QoS on the mobile devices that have Jabber installed.

20. In a Cisco WLAN deployment, it is required that all APs from branch 1 remain operational even if the control plane CAPWAP tunnel is down because of a WAN failure to headquarters .

Which operational mode must be configured on the APs?

Disconnected

Connected

Lightweight

Standalone

Page 3 of 4

21. A Cisco 8540 WLC manages Cisco Aironet 4800 Series APs and sends AoA data to a Cisco CMX 3375 Appliance for Hyperlocation. The load from the WLC is distributed to another virtual CMX server using CMX grouping. The virtual CMX server shows location RSSI data and not Hyperiocation. No AOA metrics are shown on the metrics page of the CMX virtual appliance under System > Metrics > Location Metrics .

How must the network administrator RESOLVE THIS ISSUE?

Allow port 2003 for AoA packets to flow through between the CMX appliances.

Enable Wireless > Access Points > Global configuration > Enable Hyperlocation on the WL

Use one Hyperlocation-enabled W

C and CMX for AoA data

Enable the HALO module on the CMX appliance for the data collection

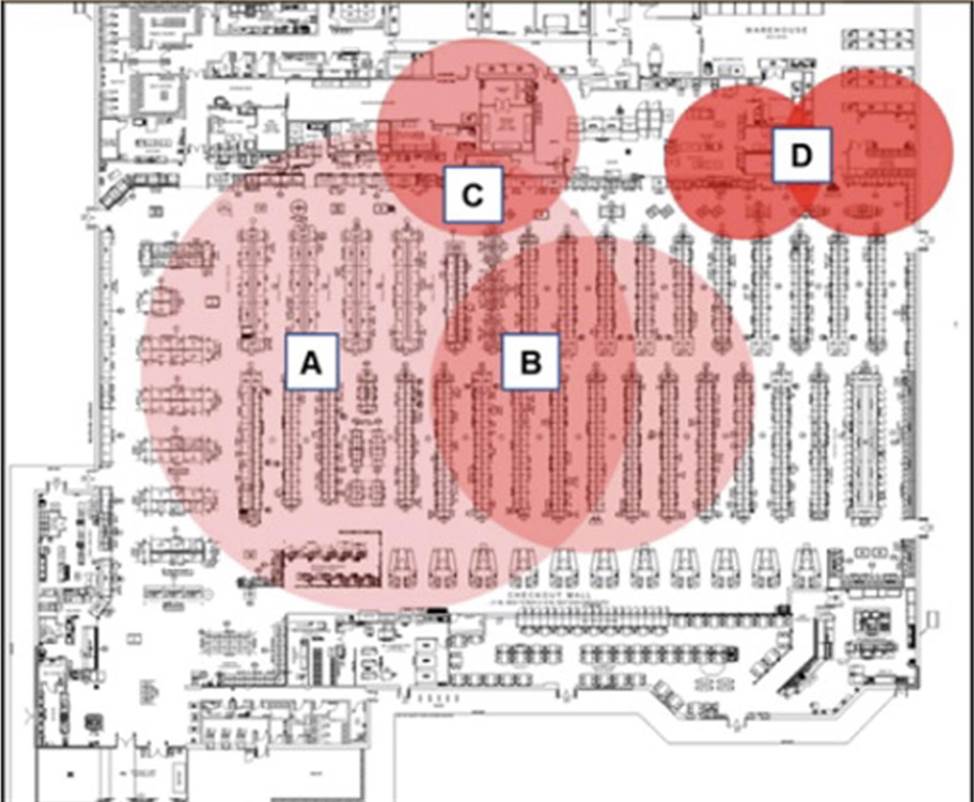

22. Refer to the exhibit .

Which are indicates the greatest impact on the wireless network when viewing the Cisco CleanAir Zone of Impact map of interferers?

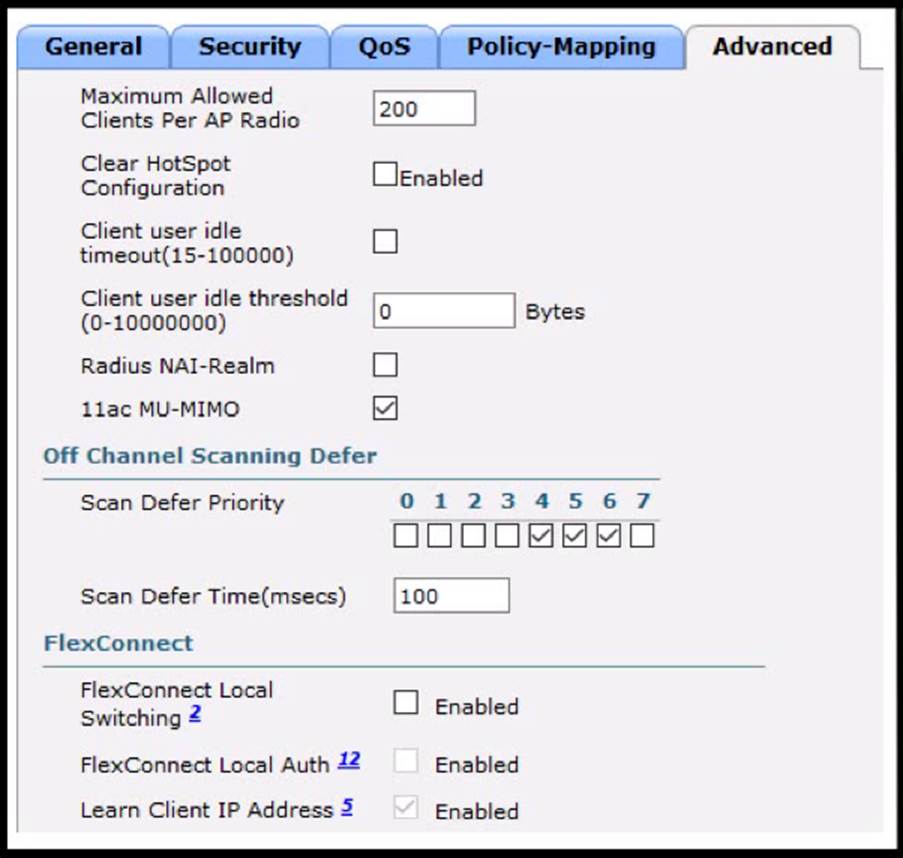

23. An engineer must implement Cisco Identity-Based Networking Services at a remote site using ISE to dynamically assign groups of users to specific IP subnets. If the subnet assigned to a client is available at the remote site, then traffic must be offloaded locally, and subnets are unavailable at the remote site must be tunneled back to the WLC .

Which feature meets these requirements?

learn client IP address

FlexConnect local authentication

VLAN-based central switching

central DHCP processing

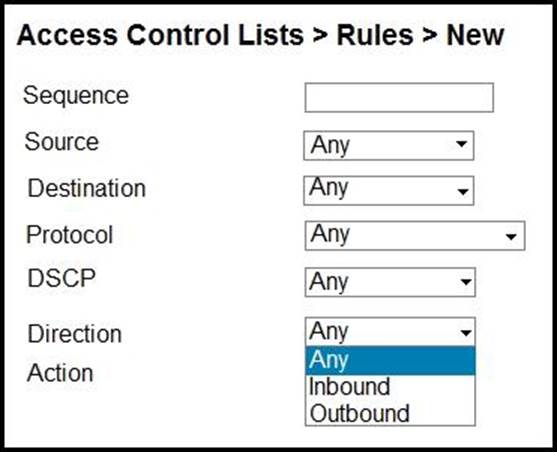

24. Refer to the exhibit.

An engineer is creating an ACL to restrict some traffic to the WLC CPU .

Which selection must be made from the direction drop-down list?

It must be Inbound because traffic goes to the WL

Packet direction has no significance; it is always Any.

It must be Outbound because it is traffic that is generated from the WL

To have the complete list of options, the CPU ACL must be created only by the CL

25. The IT manager is asking the wireless team to get a report for all guest user associations during the past two weeks.

In which two formats can Cisco Prime save this report? (Choose two.)

CSV

PDF

XLS

DOC

plain text

26. Refer to the exhibit.

A customer has implemented Cisco FlexConnect deployments with different WLANs around the global and is opening a new branch in a different location. The engineers’ task is to execute all the wireless configuration and to suggest how to configure the switch ports for new Aps .

Which configuration must the switching team use on the switch ports?

Multiple VLAN

Access mode

Trunk mode

Single mode

27. On a branch office deployment, it has been noted that if the FlexConnect AP is in standalone mode and loses connection to the WLC, all clients are disconnected, and the SSID is no longer advertised. Considering that FlexConnect local switching is enabled, which setting is causing this behavior?

ISE NAC is enabled

802.11r Fast Transition is enabled

Client Exclusion is enabled

FlexConnect Local Auth is disabled

28. A multitenant building contains known wireless networks in most of the suites. Rogues must be classified in the WLC .

How are the competing wireless APs classified?

adhoc

friendly

malicious

unclassified

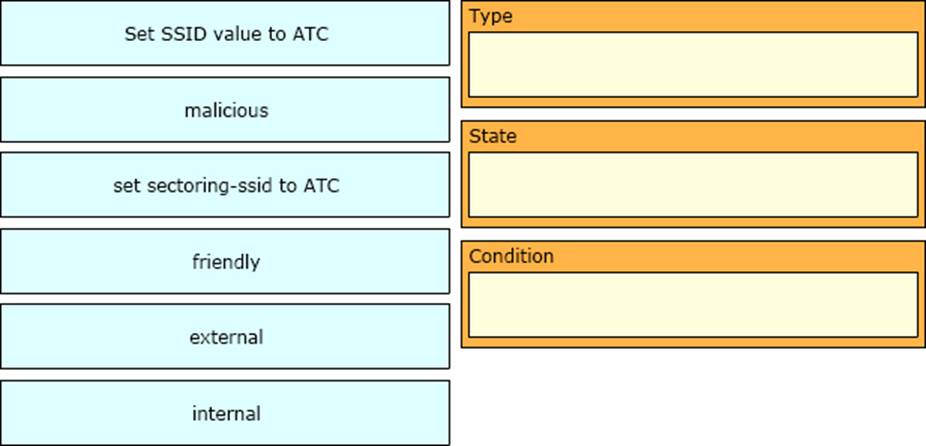

29. DRAG DROP

The network management team in a large shopping center has detected numerous roque APs from local coffee shops that are broadcasting SSIDs. All of these SSlDs have names starting with ATC (for example. ATC302. ATC011. and ATC566). A wireless network engineer must appropriately classify these SSIDs using the Rogue Rules feature.

Drag and drop the options from the left onto the categories in which they must be used on the right. Not all options are used.

30. After looking in the logs, an engineer notices that RRM keeps changing the channels for non-IEEE 802. 11 interferers. After surveying the area, it has been decided that RRM should not change the channel .

Which feature must be enabled to ignore non-802.11 interference?

Avoid Cisco AP Load

Avoid Persistent Non-WIFI Interference

Avoid Foreign AP Interference

Avoid Non-802. 11 Noise

Page 4 of 4

31. A customer wants the APs in the CEO's office to have different usernames and passwords for administrative support than the other APs deployed throughout the facility .

Which feature must be enabled on the WLC and APs to achieve this goal?

local management users

802.1X supplicant credentials

override global credentials

HTTPS access

32. An organization is supporting remote workers in different locations. In order to provide wireless network connectivity and services, OfficeExtend has been implement. The wireless connectivity is working, but users report losing connectivity to their local network printers .

Which solution must be used to address this issue?

WLAN static IP tunneling

FlexConnect local switching

OEAP split tunnel

OEAP gateway override

33. An engineer is configuring a new wireless network for guest access. The Facebook page of the company must be viewed by the guest users before they get access to the network. A Cisco MSE is used as a wireless component Which URL must be used in the configuration as the external redirection URL?

http://<MSE>:8084/vistor/login.do

http://<MSE> 8083/visitor/login.do

http://<MSE>:8083/fbwifi/forward

http://<MSE>:8084/fbwifi/forward

34. A network engineer has been hired to perform a new MSE implementation on an existing network. The MSE must be installed in a different network than the Cisco WLC .

Which configuration allows the devices to communicate over NMSP?

Allow UDP/16113portonthe central switch.

Allow TCP/16666 port on the router.

Allow TCP/16113 port on the firewall.

Allow UDP/16666 port on the VPN router.

35. An engineer wants to configure WebEx to adjust the precedence and override the QoS profile on the WLAN.

Which configuration is needed to complete this task?

Change the WLAN reserved bandwidth for WebEx

Create an AVC profile for WebEx

Create an ACL for WebEx

Change the AVC application WebEx-app-sharing to mark

36. An engineer wants the wireless voice traffic class of service to be used to determine the queue order for packets received, and then have the differentiated services code point set to match when it is resent to another port on the switch .

Which configuration is required in the network?

Platinum QoS configured on the WLAN

WMM set to required on the WLAN

mls qos trust dscp configured on the controller switch port

mls qos trust cos configured on the controller switch port

37. Where is a Cisco OEAP enabled on a Cisco Catalyst 9800 Series Wireless Controller?

RF Profile

Flex Profile

Policy Profile

AP Join Profile

38. An engineer completed the basic installation for two Cisco CMX servers and is in the process of configuring high availability, but it fails .

Which two statements about the root of the issue are true? (Choose two.)

The Cisco CMX instances are installed in the same subnet.

The types of the primary and secondary Cisco CMX installations differ.

The delay between the primary and secondary instance is 200 ms.

The sizes of the primary and secondary Cisco CMX installations differ.

Both Cisco CMX installations are virtual.

39. Which two statements about the requirements for a Cisco Hyperlocation deployment are true? (Choose two.)

After enabling Cisco Hyperlocation on Cisco CMX, the APs and the wireless LAN controller must be restarted.

NTP can be configured, but that is not recommended.

The Cisco Hyperlocation feature must be enabled on the wireless LAN controller and Cisco CM

The Cisco Hyperlocation feature must be enabled only on the wireless LAN controller.

If the Cisco CMX server is a VM, a high-end VM is needed for Cisco Hyperlocation deployments.

40. A customer requires wireless traffic from the branch to be routed through the firewall at corporate headquarters. A RADIUS server is in each branch location .

Which Cisco FlexConnect configuration must be used?

central authentication and local switching

local authentication and central switching

central authentication and central switching

local authentication and local switching
