Want to pass HPE6-A69 exam in your first try? Aruba Certified Switching Expert Written Exam validates candidates’ knowledge of expert implementation experience with Aruba wired switching solutions, including the ability to implement and optimize enterprise-level Aruba Switching campus LAN solutions. FreeTestShare HPE6-A69 Dumps Questions are based on actual exam questions and will help you get the necessary subject matter knowledge to pass the HPE6-A69 exam and further your career. The HPE6-A69 Dumps Questions ensures a 100% success rate. You can use the free HPE6-A69 practice tests to familiarize yourself with our product.

This free HPE6-A69 practice test can now be used to assess your preparation.

Page 1 of 2

1. Which statement is true about NAE scripts'?

The System Resource Monitor is the only script Installed on the system by default.

The System Resource Monitor and Health Monitor a/e the only scripts installed on the system by default

No script is installed on the system by default.

The Health Monitor is the only script installed on the system by default.

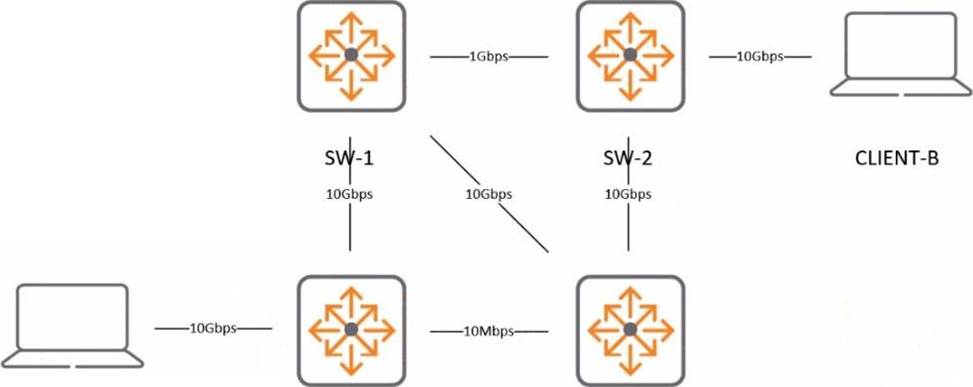

2. A customer would like to utilize some ArubaOS-CX 6300M switches to perform OSPF routing.

All ports are routed, and ECMP is enabled, with other default parameters for OSPF.

What will be the result of traffic sent from CLIENT-A to CUENT-B?

Traffic will be SW3 -> SW-4 -> SW-2.

Traffic win be SW3 -> SW-1 -> sw-2.

Traffic will be SW3 -> SW-1 -> sw-4 -> SW-2

Traffic will be SW3 -> SW-1 -> Sw-2 & SW3 -> SW-4 -> SW-2

3. Which statement is true regarding IP-SLA?

ArubaOS-CX supports Doth SLA configuration through CU and by agents through the NA

ArubaOS-CX supports forever tests

ArubaOS-CX supports on-demand as well as forever tests.

The default and minimum probe interval for voip SLA is 180 seconds

4. ArubaOS-CX 8325 VSX configuration has a Tailed ISL link between the switches with keepalive status established.

While troubleshooting the condition, what is the expected behavior of the VSX traffic flow in the current condition?

vsx tables are n sync

VSX tables are out of sync

VSX nodes Keep forwarding traffic over its interfaces

VSX protection state is OK

VSX peer is seen as down

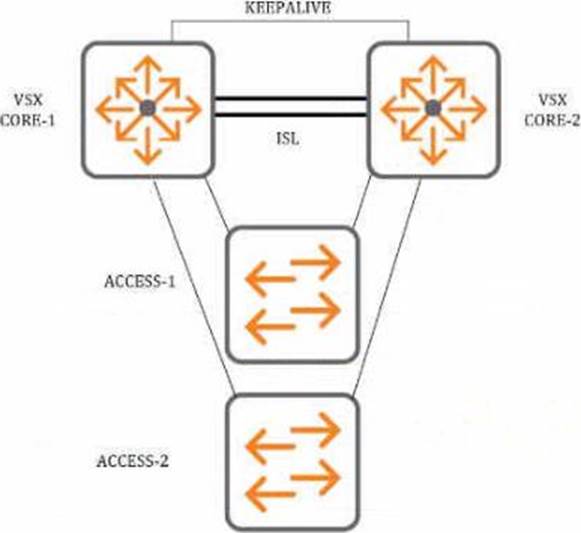

5. Refer to the exhibit.

A customer has implemented this ArubaOS-CX solution. NetEdit is not present. After a while, the secondary node of the VSX-cluster fails.

What is the correct procedure to replace the failed node as quickly as possible?

Replace the failed unit, boot up the new node without connecting cables, upgrade firmware and configure as secondary vsx node connect iSl and wart for VSX to synchronize After successful recovery, reconnect the remaining cables.

Replace the failed unit, boot up the new node without connecting cables, upgrade firmware, and restore and save config Shutdown all ports, reconnect the correct cables, and enable all ports

Replace the failed unit, connect the correct cables, boot up the new node in recovery mode, upgrade firmware and restore, and save config Then, reboot and wait for VSX to synchronize.

Replace the failed unit, connect the correct cables, boot up the new node and wait for VSX to synchronize configuration and firmware.

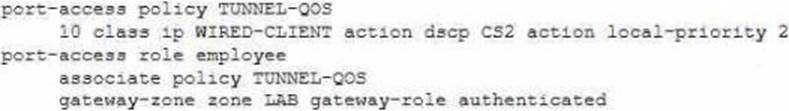

6. Refer to the following configuration:

How do you configure QoS policies for user traffic in conjunction with user roles in all wired access switches? (Select two)

Use NetEdit to replicate the configuration of QoS policies to all wired switches

in a RADIUS server with Aruba Vendor Specific Attribute (VSA) dictionary, you can add QoS policies for user roles.

With ClearPass and downloadable user roles, you can add QoS policies for user roles

QoS policies should be configured by the Mobility Controller when you need to set to all wired access switches

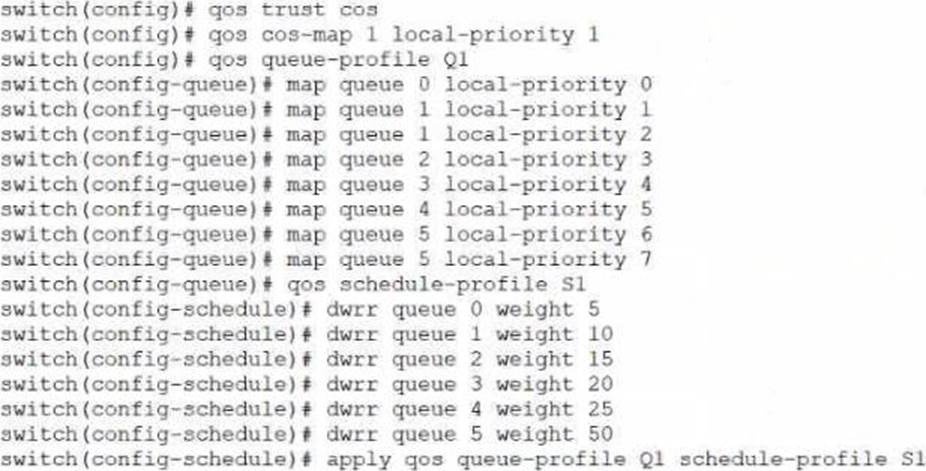

7. Refer to the exhibit.

Which statement is true?

Q1 and S1 are applied to all interfaces mat do not have a QoS override applied

To be effective, both Q1 and S1 still need to be applied to Interfaces

No default queues are changed

Q1 and S1 are applied to all interfaces.

8. What are the requirements for managing a switch using Aruba NetEdit? (Select two)

REST access-mode must be set to read-write.

HTTPS service must be restricted to the management VRF

The switch user account mat NetEdit uses should have a password.

Telnet must be disabled on the switch

9. A customer would like to utilize some ArubaOS-CX 6300F switches to perform OSPF routing.

With the ports set up as routed ports, and default parameters for OSPF, which action is the simplest way to allow the fastest communication…

Utilize Equal-cost multi-path routing to aggregate more bandwidth on the WA

Set the OSPF cost parameters on every interface on every switch according to the Bandwidth or each link

No action is required

Set the OSPF reference bandwidth to 10 or higher

10. You have designed a new wired solution for a customer that uses gateways and Dynamic Segmentation.

Which statements about User-Based Tunneling are true? (Select two)

In U8T, the switch performs user authentication.

in UBT, the Aruba Gateway performs user authentication

UBT is supported only with Aruba Gateway standalone

in UBT, the switch sends user role Information to Aruba Gateway

In UBT, the Aruba Gateway assigns the Primary user role

Page 2 of 2

11. You are working with a customer whos has a paw of Aruba 8325 switches configured for Multi-Chassis Link Aggregation The customer is complaining that users are experiencing intermittent packet drops.

Which action should be taken to quickly aid you in identifying the cause?

Enable debug of vri with "console" set as the destination

Setup a mirror session to generate a Tshark file.

Setup a mirror session to niter packets for TCPDUMP analysis

Check the configured VLANs using "show vsx config-consistency"

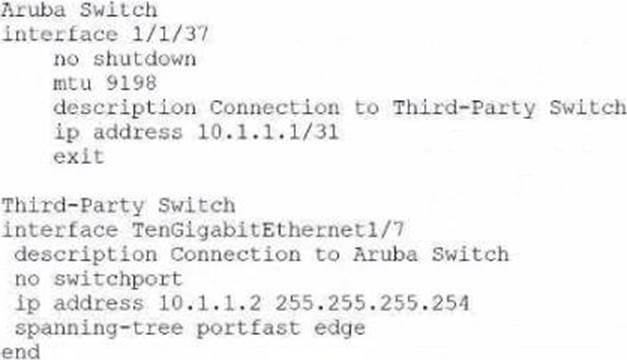

12. A customer wants to verify the proposed configuration snippets to create a point-to-point link between Aruba Switch and a third-party switch.

Will this configuration work with static routing?

No, the configuration will not work, because the Aruba Switch has an MTU mismatch which will prevent IP communication.

No. the configuration will not work, because the Aruba Switch does not have a locally reachable IP address from the third-party switch.

No. the configuration will not work because the Aruba Switch does not have the "routing" command on it

yes, the configuration should work fine and has no issues

13. (Scenarios may contain multiple errors which may or may not Impact the solution >

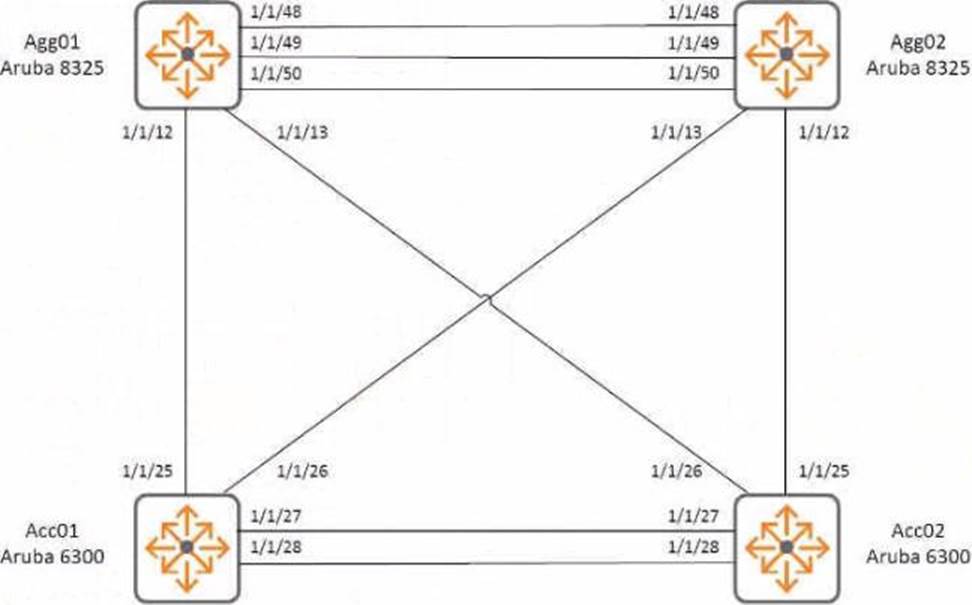

Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration it is required to implement VSX keep-alive at the aggregation layer.

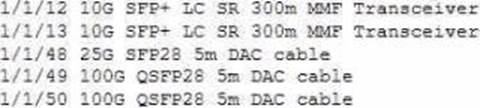

The ports of the ArubaOS-CS 8325 switches used for Agg01 and Agg02 are populated as follows:

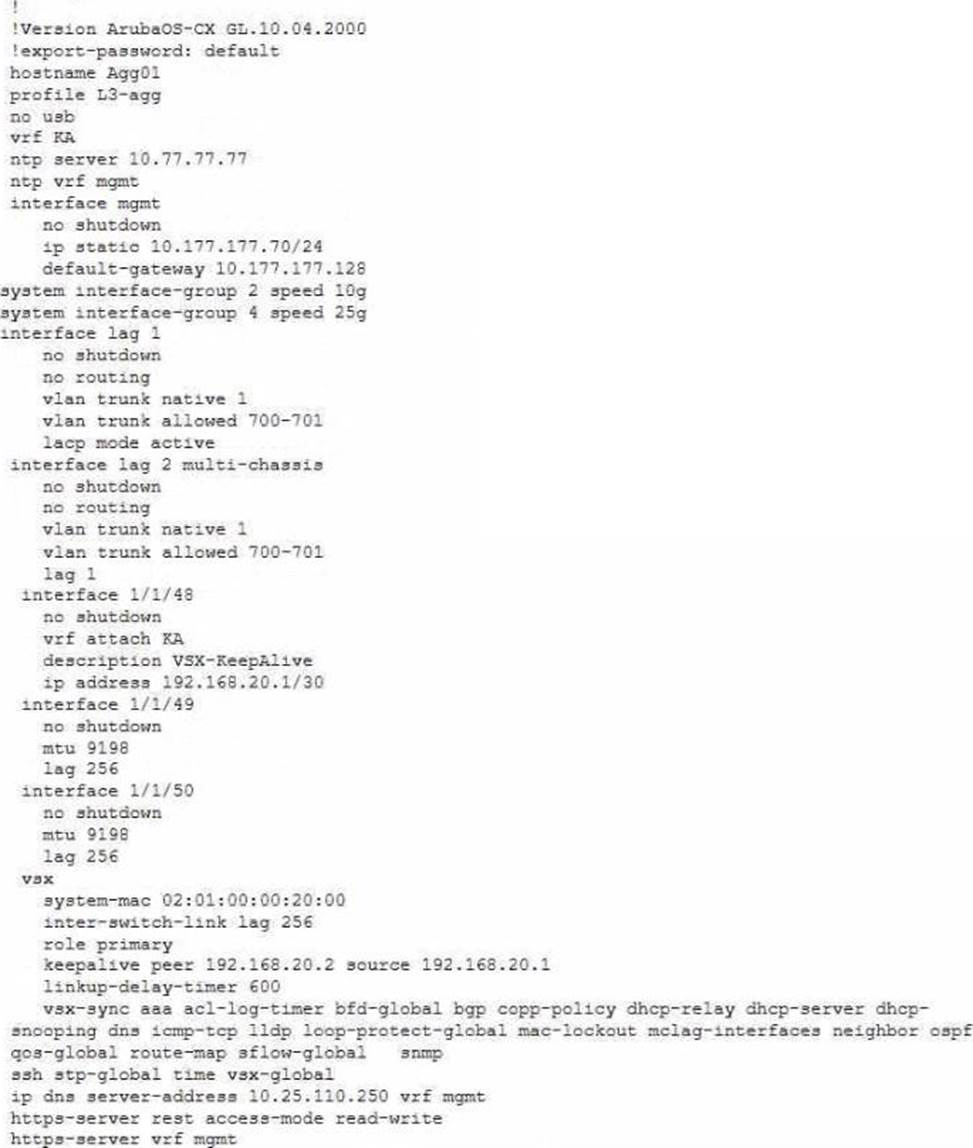

The configuration of switch AGG01 includes:

VSX keep-alive is not working.

Which modification should you make lo resolve the error condition?

Edit interface 1/1/48, adding the command "vpn-instance KA"

Modify the Interface lag 2 command, removing "multi-chassis"

Modify the Keepalive peer 192.168.20.2 source 192 168.20.1 command, adding "vrf KA"

Edit the vsx-sync command, adding "keep-alive"

The ArubaOS-CX switch requires plain-text authentication with OSP

The third-party switch should be configured with MD5 authentication

The ArubaOS-CX switch does not expect authentication with OSP

The third-party switch should be configured with key chain authentication

15. An administrator has identified a denial of service attack that is stressing the management processor on the switch.

Which actions can be applied to CoPP to mitigate the issue? (Select two.)

Set the processing priority

Create a policy that matches the payload of GRE traffic.

Regulate traffic from the OOBM Ethernet port

Apply multiple active polices for the classes of traffic

16. The customer has a requirement for creating security filtering for IPv4 and IPv6 traffic passing through an ArubaOS-CX 6400 switch.

Which statement Is true about access-list on the selected switch model?

IPv4 and IPv6 entries can be used in one ACL with separate rules

Separate IPv4 and IPv6 ACLs need to be created for inbound and outbound traffic

Only one inbound or outbound ACL can be bound to an interface.

Routed interfaces can have only inbound ACLs
