JNCDS-SP is one of the specialist-level certifications in Design track, it is designed for networking professionals and designers with intermediate knowledge of service provider design, theory, and best practices. The written exam verifies your understanding of service provider design principles.

It is best to challenge and develop your knowledge in order to pass the Juniper JN0-1362 test. We recommend practicing with FreeTestShare JNCDS-SP JN0-1362 Practice Exam Questions to test your knowledge and identify areas for development in an actual exam environment. These sample questions and demo exam can help you clear your doubts and prepare for the exam.

Page 1 of 2

1. Which statement is correct about learning remote host MAC addresses when your DCI is based on EVPN?

No MAC learning by the provider edge (PE) device is performed

Static MAC configuration on the provider edge (PE) device is perform

Data plane MAC learning by the provider edge (PE) device is performed.

Control plane MAC learning by the provider edge (PE) device

2. Your customer is deploying a multitenant data center and needs help with the WAN edge design.

What are two mam design considerations for this environment? (Choose two.)

control plane redundancy

NAT requirements

unified threat management

Virtual Chassis Control Protocol

3. What are two network management benefits of using devices in your design proposals?

Virtualization allows network administrators to dynamically make configuration changes to all network devices.

Virtualization can lower costs because there are fewer physical devices that need to be purchased and managed.

Virtualization can increase the available network bandwidth because their interface speeds are only limited by the host device.

Virtualization allows network administrators to dynamically add and remove services beingprovided

4. You are asked to design a WAN for a large enterprise. Each site must have multiple connections for redundancy. MPLS is not available at every site butit is preferred where available.

Which topology satisfies these design requirements?

hub-and-spoke Internet WAN

full mesh SD-WAN

full mesh MPLS VPN

hub-and-spoke SD-WAN

5. You work for a service provider that offers Layer 2 services. One of the customers is purchasing Layer 2 VPN services to interconnect several sites.

In this scenario, which two functions are provided by the PE router? (Choose two )

It maintains all customer Layer 3 routing information.

It selects the appropriate Layer 2 VPN in the service provider network.

It maintains an MP-BGP session with each customer site to exchange customer routing information

It maintains MPLS LSPs between the sites.

6. Which two network availability features require a router to have two Routing Engines installed? (Choose two.)

JVRRP

GRES

nonstop routing

graceful restart

7. You are designing an MPLS-based network overlay for your environment that use either LDP or RSVP-signated LSPs.

Which two statements are true about these two signaling technologies (Choose two.)

Which two statements are true about these two signaling technologies? (Choose two.)

RSVP requires the traffic engineering database (TED) to find the best path across the network.

LDP uses EROs to influence the path of an LSP and enable traffic engineering.

LDP leverages the IGP to find the best path across the network.

RSVP enables an administrator to configure different traffic types to take different paths across the MPLS network.

8. Your customer wants to enable their MX Series core so that a controller can dynamically manage their LSPs.

Which protocol provides this capability?

BGP-LU

PCEP

PCRF

BGP-LS

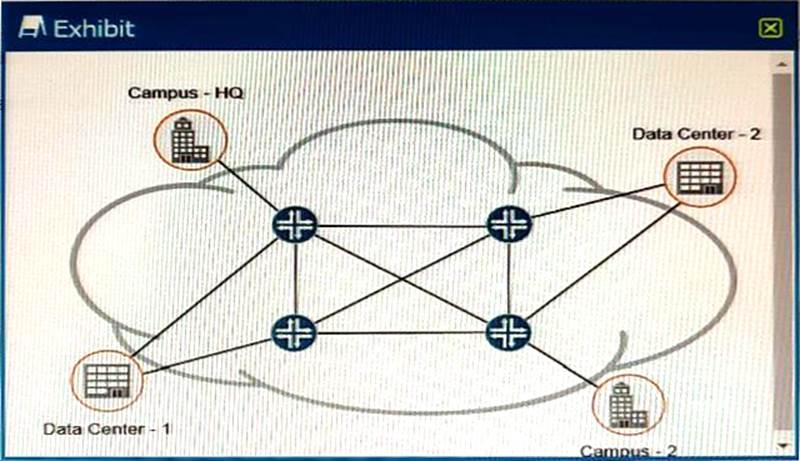

9. Exhibit.

You want to design a VPN service that will allow your enterprise the ability to span their VLANs between the four sites shown in the exhibit, while allowing point-to-multipoint connectivity.

Which two MPLS VPN technologies allow this type of functionality (Choose two.)

EVPN

Layer 2 VPN

VPLS

Layer 3 VPN

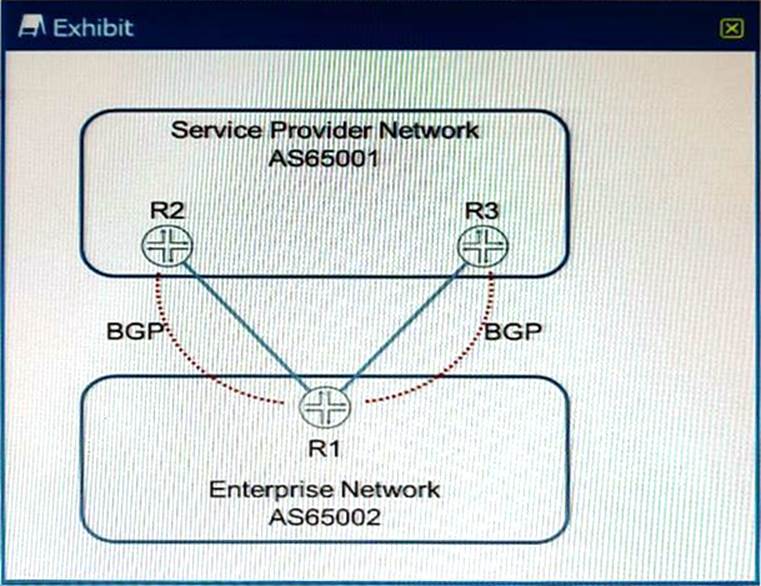

10. Click the Exhibit button:

Referring to the exhibit, which mechanism is used to advertise routes from the enterprise network to the service provider network?

BGP flowspec

BGP export policies

BGP import policies

firewall filters

Page 2 of 2

11. You work for a corporation deploying new data centers using EVPN/VXLAN You are considering using EVPN for the data center interconnects. The hardware and software being deployed in the data centers support EVPN Type 5 routes.

In this scenario, which additional DCI benefit do Type 5 routes provide?

Type 5 routes support Layer 3 connectivity across multiple data centers, eliminating the need to advertise Layer 3 VPN routes.

Type 5 routes provide Layer 2 connectivity across multiple data centers, if MPLS encapsulation is being used.

Type 5 routes provide Layer 2 connectivity across multiple data centers, if VXLAN encapsulation is being used.

Type 5 routes support Layer 2 and Layer 3 connectivity between data center eliminating the need to advertise Layer 3 VPN and Layer 2 VPN routes.

12. You are developing a CoS policy for a service provider core network that In this scenario, which three statements are correct? (Choose three.)

Core routers should use a common set of per-hop behaviors.

Core routers should use shapers to ensure that customer traffic does not exceed allowed bandwidth.

Core routers should use policers to ensure that customer traffic does not exceed allowed bandwidth.

Core routers should use a consistent CoS configuration across the network.

Core routers should use the DSCP markings already set on ingress traffic.

13. Since deploying VPLS, you notice an unusually high level of traffic In your nine topology. On further inspection, you determine that broadcast traffic is causing the problem. Thetraffic is legitimate. Nevertheless, you are asked to look into options that allow the network to scale.

In this scenario, what would you do to solve the problem?

Mark broadcast traffic with a high drop priority.

Move from LDP-signaled VPLS to BGP-signaled VPL

Add a broadcast policer and an unknown unicast policer to each VPL

Deploy P2MP LSPs.

14. You are designing a solution for a company with a central office with several branch locations geographically dispersed. You are given the following requirements:

― provides a different bandwidth at each location,

― has any-to-any connectivity,

― offloads some network responsibility.

― is inherently isolated.

― has a simple network design.

Which statement satisfies these requirements?

Implement WAN over the public Internet.

Implement Layer 3 VPN services at each location

Implement Layer 2 VPN point-to-point circuits from each location to the central office.

Implement services on a mesh of dark fiber between each location

15. Your company's automation team is testing a controller-based solution for dynamic LSP management They do not want the topology acquisition process to allow the controller to become a transit node of the core network's.

Which solution would fulfill the requirements?

BGP-LS

PCCD

PCEP

BGP-LU

16. You belong to an organization consisting of multiple sites. Your topology is constantly changing. You need a method of encrypting traffic between sites.

Which technology enables you to add new sites without reconfiguring existing sites?

IPsec Auto VPN with ADVPN

mesh IPsec overlay VPN

point-to-point IPsec VPN

hub-and-spoke IPsec VPN

17. What are two considerations for using the public Internet for WAN connectivity? (Choose two.)

End-to-end traffic is best effort.

It is inherently insecure, and additional encryption should be considered.

End-to-end CoS and larger MTU are possible.

It is inherently secure and does not require additional encryption.
